细说玻璃隔断的分类、安装、工艺知识!

文章出处:http://www.jnkdblgd.com/ 人气: 发表时间:2022-06-20
济南玻璃隔断的分类
Classification of Jinan glass partition
1、按主要玻璃类型分:单层玻璃隔断、双层玻璃隔断、夹胶玻璃隔断、真空玻璃隔断;
1. According to the main glass types: single glass partition, double glass partition, laminated glass partition and vacuum glass partition;
2、按隔断框架材质分:铝合金框架玻璃隔断、不锈钢框架玻璃隔断、钢结构框架玻璃隔断、木龙骨框架玻璃隔断、塑钢框架玻璃隔断、钢铝结构框架玻璃隔断、钢木材质有框玻璃隔断、无框纯玻璃隔断;
2. Divided by partition frame material: aluminum alloy frame glass partition, stainless steel frame glass partition, steel structure frame glass partition, wood keel frame glass partition, plastic steel frame glass partition, steel aluminum structure frame glass partition, steel wood framed glass partition and frameless pure glass partition;
3、按框架材质尺寸:26mm玻璃隔断、50mm玻璃隔断、80mm玻璃隔断、85mm玻璃隔断、100mm玻璃隔断、定制特殊规格框架等;
3. According to the frame material size: 26mm glass partition, 50mm glass partition, 80mm glass partition, 85mm glass partition, 100mm glass partition, customized special specification frame, etc;
4、按轨道形式分:固定玻璃隔断、移动玻璃隔断、折叠玻璃隔断;
4. Divided by track form: fixed glass partition, mobile glass partition and folded glass partition;
5、按高度和尺寸分:高玻璃隔断、短玻璃隔断、屏风隔断;
5. By height and size: high glass partition, short glass partition and screen partition;
6、按玻璃的功能和性质分:安全玻璃隔断、防火玻璃隔断、超白玻璃隔断、防爆玻璃隔断、艺术玻璃隔断等。
6. According to the function and nature of glass: safety glass partition, fireproof glass partition, ultra white glass partition, explosion-proof glass partition, art glass partition, etc.
济南玻璃隔断安装步骤
Installation steps of Jinan glass partition
确定玻璃隔断的安装位置,在上面画出定位线,然后用铅笔在墙上确定高度,最后根据实测尺寸定制玻璃隔断。
Determine the installation position of the glass partition, draw a positioning line on it, then use a pencil to determine the height on the wall, and finally customize the glass partition according to the measured size.
在转角铝片上打两个3mm左右的孔,将冲好的转角铝片放入型材中,然后根据转角铝片的钻孔位置,在垂直型材上继续钻同样的孔,然后用螺丝固定垂直型材的角铝部件。
Drill two 3mm holes on the corner aluminum sheet, put the punched corner aluminum sheet into the profile, then continue to drill the same holes on the vertical profile according to the drilling position of the corner aluminum sheet, and then fix the corner aluminum parts of the vertical profile with screws.
完成后在建筑结构板下做支架,安装玻璃夹具和上框,玻璃固定在框上,最后用螺丝固定玻璃和框,上下框玻璃可以固定在水平面上。,安装玻璃隔墙。
After completion, make a support under the building structural plate, install the glass fixture and upper frame, fix the glass on the frame, and finally fix the glass and frame with screws. The upper and lower frame glass can be fixed on the horizontal plane., Install glass partition.

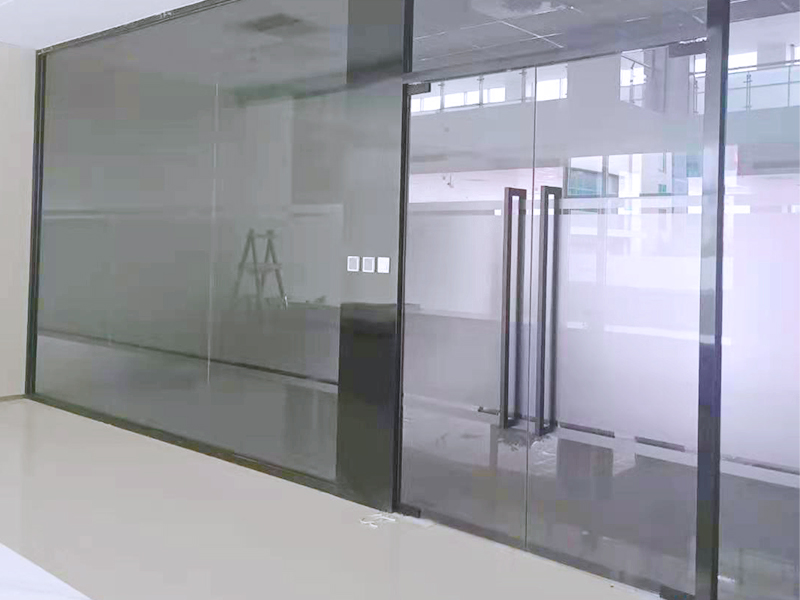

济南玻璃隔断
济南玻璃隔断操作流程介绍
Introduction of Jinan glass partition operation process
根据楼板设计的水平线,顺着墙高到吊顶设计水平线,沿墙截断天地龙骨的垂直水平线和水平线,画出龙骨的放坡位置线在天地龙骨的水平线上。
According to the horizontal line of the floor design, cut off the vertical and horizontal lines of the heaven and earth keel along the wall from the wall height to the ceiling design horizontal line, and draw the grading position line of the keel on the horizontal line of the heaven and earth keel.
地龙骨安装:按设计要求固定天地龙骨。如无设计要求,可用Ф8~Ф12膨胀螺栓或3~5寸钉固定,膨胀螺栓固定点间距为600~800mm。安装前做好防腐处理。
Ground keel installation: fix the ground keel according to the design requirements. Available if there is no design requirement Ф 8~ Ф 12 expansion bolts or 3-5-inch nails shall be used for fixation, and the spacing between the fixed points of expansion bolts shall be 600-800mm. Anti corrosion treatment shall be done before installation.
沿墙龙骨安装:按设计要求固定侧龙骨。如无设计要求,可用Ф8~Ф12膨胀螺栓或3~5寸钉及预埋木砖固定,固定点间距800~1000mm。安装前做好防腐处理。
Installation along the wall keel: fix the side keel according to the design requirements. Available if there is no design requirement Ф 8~ Ф 12 expansion bolts or 3~5 inch nails and embedded wood bricks shall be used for fixation, and the spacing between fixed points shall be 800~1000mm. Anti corrosion treatment shall be done before installation.
根据设计要求,将主龙骨按分级线位置固定,用4寸铁钉固定。龙骨两端应固定不少于三个钉子。
According to the design requirements, fix the main keel according to the position of the grading line, and fix it with 4-inch iron nails. At least three nails shall be fixed at both ends of the keel.
根据设计要求,将小龙骨按分级线位置固定,用榫头或钉子固定。
According to the design requirements, fix the small keel according to the position of the grading line, and fix it with mortise or nail.
根据设计要求,按玻璃规格安装在小龙骨上。如果用珠子安装,先把珠子固定在玻璃的一侧,在玻璃下面垫一块橡胶垫,再用珠子固定玻璃;如果玻璃直接用玻璃胶固定,则应先将玻璃安装在小龙骨的预留槽内。,然后用玻璃胶密封。
According to the design requirements, it is installed on the small keel according to the glass specification. If beads are used for installation, first fix the beads on one side of the glass, pad a rubber pad under the glass, and then fix the glass with beads; If the glass is directly fixed with glass glue, the glass shall be installed in the reserved slot of the small keel first., Then seal with glass glue.
将纸胶带粘在玻璃四周边缘,并按设计要求在玻璃与小龙骨之间均匀打上各种玻璃胶。待玻璃胶完全干透后,撕掉纸胶带。
Stick the paper tape around the edges of the glass, and evenly apply various glass adhesives between the glass and the dragon bone according to the design requirements. After the glass adhesive is completely dry, remove the paper tape.
根据设计要求,用直钉或玻璃胶将各种规格、材质的珠条固定在小龙骨上。可根据需要选择10×12mm木珠、10×10mm铝珠或10×20mm不锈钢珠。
According to the design requirements, beads of various specifications and materials shall be fixed on the small keel with straight nails or glass glue. 10 can be selected as required × 12mm wood bead, 10 × 10mm aluminum bead or 10 × 20mm stainless steel beads.
